Introduction
Electrical systems require reliable protection to prevent equipment damage, reduce operational risks, and safely control the flow of electricity. Circuit breakers are among the most important devices used for this purpose because they can interrupt current when abnormal conditions such as short circuits or other faults occur. One widely used type in medium-voltage power systems is the Vacuum Circuit Breaker, commonly abbreviated as VCB. The full form of vcb in electrical engineering is Vacuum Circuit Breaker. A VCB uses a vacuum inside a sealed interrupter to extinguish the electrical arc produced when its contacts separate. This technology allows the breaker to interrupt fault current quickly and provides strong insulation after current interruption. VCBs are commonly used in substations, industrial facilities, distribution networks, and other electrical installations where dependable switching and protection are required.
Understanding VCB technology is useful for electrical engineers, technicians, students, operators, and people working with medium-voltage switchgear. Although the device may appear complicated from the outside, its basic purpose is straightforward: it connects and disconnects an electrical circuit while providing protection during abnormal conditions. The vacuum interrupter is the central component that makes this type of circuit breaker different from air- or oil-based designs.
What Is the Full Form of VCB?

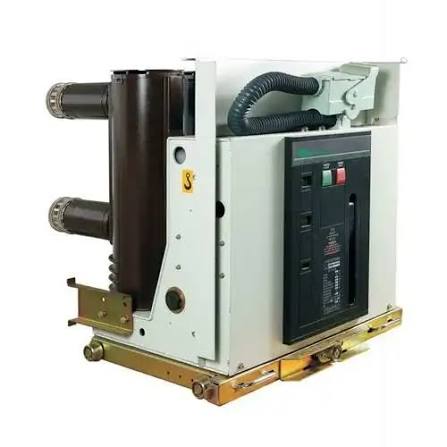

The full form of vcb in electrical systems is Vacuum Circuit Breaker. It is a circuit breaker that uses a vacuum as the medium for extinguishing the arc generated when electrical contacts separate. Unlike conventional breakers that may use air, oil, or other insulating media, the VCB contains a sealed vacuum interrupter. The vacuum provides high dielectric strength and allows the arc to disappear rapidly after current interruption.
VCBs are generally associated with medium-voltage applications and are commonly found in power distribution and industrial electrical systems. Their design combines switching and protection functions within a relatively compact arrangement. Depending on the installation, a VCB can be operated manually or through electrical control systems. Protection relays can detect abnormal electrical conditions and send a signal to the breaker so that it opens and isolates the faulty portion of the circuit.
How Does a Vacuum Circuit Breaker Work?
The working principle of a VCB is based on separating electrical contacts inside a sealed vacuum interrupter. Under normal operating conditions, the contacts remain closed and current flows through the circuit. When the breaker receives an opening command, its operating mechanism separates the contacts. During this separation, an electrical arc can form between the contacts because current is still flowing.
The vacuum environment helps the arc extinguish rapidly. After the current reaches its natural zero point in an AC system, the dielectric strength between the separated contacts recovers quickly, helping prevent the arc from being re-established. The circuit is therefore interrupted and the faulty section can be isolated. Official technical guidance for high-tension VCB panels describes the vacuum interrupter, fixed and moving contacts, operating mechanism, and insulation housing as key parts of the breaker.
Main Components of a VCB
A Vacuum Circuit Breaker contains several components that work together to provide safe switching and fault interruption. The vacuum interrupter is the most important component because it contains the fixed and moving contacts within a sealed vacuum chamber. When the contacts separate, the vacuum environment assists with arc extinction and electrical insulation.
The operating mechanism controls the movement of the contacts. Depending on the design, it may use a spring-charged mechanism, motorized operation, or manual controls. The breaker also includes insulating components that separate conductive parts and provide electrical safety. In switchgear installations, additional equipment such as protection relays, current transformers, control circuits, interlocks, and earthing arrangements may work alongside the VCB. These supporting components help ensure that the breaker operates correctly and safely during normal operation and fault conditions.
Role of the Vacuum Interrupter
The vacuum interrupter is the heart of a VCB. It is a sealed chamber designed to maintain a high vacuum around the electrical contacts. The chamber typically contains a fixed contact, a moving contact, contact structures, and insulating components. Because the chamber is sealed, the internal environment remains isolated from normal atmospheric conditions.
When the contacts separate during interruption, an arc may briefly develop from metal vapor released by the contact surfaces. As the current approaches zero, the arc is extinguished and the vacuum quickly regains high insulating strength. This rapid recovery is one of the key reasons vacuum interruption is useful for medium-voltage switching applications. The sealed design also means there is no need to replenish an arc-quenching liquid during normal operation.
Applications of VCB in Electrical Systems
The full form of vcb in electrical terminology becomes especially relevant when discussing medium-voltage switchgear. VCBs are widely used in electrical distribution networks, industrial plants, substations, commercial facilities, power generation installations, and other systems where medium-voltage switching and protection are required. Government technical guidance in India describes VCBs as equipment used in high-tension switchgear and for distribution and transformer protection.
In an industrial facility, a VCB may be installed to control and protect a feeder supplying important equipment. In a substation, it can be used to interrupt a feeder during a fault or to switch a circuit during planned electrical operations. The exact voltage rating, current rating, breaking capacity, insulation level, and operating mechanism depend on the application and manufacturer’s specifications. Proper selection is essential because a breaker must be capable of safely interrupting the expected fault current.
Advantages of Vacuum Circuit Breakers
VCBs offer several advantages for modern electrical installations. One important benefit is their relatively low maintenance requirement compared with some older circuit-breaker technologies. Because the interrupter is sealed, there is no arc-quenching oil that needs regular replacement. The absence of oil also reduces concerns associated with oil leakage and fire.
Another advantage is fast arc interruption and good dielectric recovery. Vacuum technology also allows manufacturers to create compact switchgear arrangements. VCBs can provide reliable switching for repeated operations when properly selected, installed, maintained, and operated. They are also useful from an environmental perspective because the interruption medium is vacuum rather than an insulating liquid or a fluorinated gas. These characteristics have helped make vacuum interruption a common technology in modern medium-voltage systems.
VCB Compared With Other Circuit Breakers
Electrical systems use different types of circuit breakers depending on voltage, current, fault level, installation requirements, and operating conditions. An Air Circuit Breaker, or ACB, uses air as its primary arc-extinguishing medium and is commonly associated with low-voltage applications. A VCB, by contrast, uses a vacuum interrupter and is commonly used in medium-voltage switchgear.
Older Oil Circuit Breakers use insulating oil for arc extinction, while vacuum breakers use a sealed vacuum chamber. Each technology has its own design considerations. Modern installations frequently use vacuum technology for medium-voltage applications because of its compact design, low routine maintenance requirements, and effective interruption characteristics. However, the correct breaker should always be selected according to the actual electrical system rather than simply choosing a technology based on general advantages.
Protection Against Electrical Faults
One of the most important purposes of a VCB is protecting electrical equipment from dangerous fault conditions. A short circuit can cause a very large current to flow through conductors and equipment. If the fault is not cleared quickly, it can cause overheating, mechanical stress, insulation damage, fire, or equipment failure.
A protection relay normally detects abnormal electrical conditions using signals from instrument transformers or other sensing equipment. When the relay determines that a fault has occurred, it sends a trip command to the circuit breaker. The VCB then opens its contacts and interrupts the current. This coordinated operation helps isolate the affected part of the system while allowing other sections to continue operating when the system design permits it.
VCB Panels and Switchgear
A VCB is often installed as part of a larger switchgear panel rather than operating as a completely independent device. A typical indoor VCB panel may contain the breaker, busbars, current transformers, voltage transformers where required, protection relays, control wiring, interlocks, and other safety equipment.
Withdrawable VCB panels can allow the breaker to be moved between different positions, such as service, test, and isolated positions, depending on the switchgear design. Safety shutters can cover live contacts when the breaker is withdrawn, reducing the risk of accidental contact during maintenance. Such safety features are especially important because medium-voltage equipment can present severe electrical hazards even when the equipment appears inactive.
Maintenance and Testing
Although VCBs generally require less routine maintenance than some older breaker technologies, they still require appropriate inspection and testing. Maintenance programs should follow the manufacturer’s instructions, applicable electrical standards, and the requirements of the installation. Technicians may inspect the operating mechanism, electrical connections, insulation condition, control circuits, interlocks, and mechanical operation.
Testing can also be performed to confirm that the breaker and its associated protection system operate correctly. Depending on the installation, tests may include insulation resistance, contact resistance, mechanical operation, protection relay testing, timing measurements, and other specialized checks. Such work should only be performed by qualified personnel using suitable procedures and equipment because medium-voltage systems can be extremely hazardous.
Safety Precautions
Electrical safety is essential whenever VCB equipment is installed, operated, tested, or maintained. Operators should follow the manufacturer’s operating instructions and the site’s electrical safety procedures. Appropriate isolation, lockout and tagout procedures, verification of de-energization, and proper earthing are important before maintenance activities.
Personnel should never assume that equipment is safe simply because a breaker is in the open position. Stored electrical or mechanical energy and nearby energized components can still present hazards. Proper interlocking and safety procedures help reduce the possibility of accidental operation or contact with live parts. Maintenance should be performed only by appropriately trained and authorized electrical professionals.
Importance of VCB in Modern Power Distribution
The full form of vcb in electrical engineering represents more than simply an abbreviation. Vacuum Circuit Breakers are important components of modern medium-voltage power distribution because they combine switching, fault interruption, and electrical protection within a practical design. Their use in substations, industrial plants, distribution systems, and other installations supports reliable power management.
As electrical networks become more complex, dependable switching equipment becomes increasingly important. Facilities may need to isolate faulty sections quickly while keeping unaffected areas energized. VCB-based switchgear can support this requirement when it is correctly specified, coordinated with protection systems, and maintained according to appropriate procedures.
Conclusion
The full form of vcb in electrical engineering is Vacuum Circuit Breaker. It is a circuit breaker that uses a sealed vacuum interrupter to extinguish electrical arcs when its contacts separate. VCBs are widely used in medium-voltage electrical systems because they offer effective fault interruption, compact construction, low routine maintenance requirements, and reliable switching performance.
Understanding the basic working principle, components, applications, advantages, and safety requirements of a VCB is important for anyone studying or working with electrical power systems. The vacuum interrupter is the central component, while the operating mechanism, protection relay, control system, and switchgear enclosure work together to provide safe and dependable operation.
Ultimately, the full form of vcb in electrical systems refers to an important protection and switching technology used across modern power distribution. When properly selected, installed, tested, and maintained by qualified professionals, a Vacuum Circuit Breaker can play a major role in protecting electrical equipment and supporting reliable power-system operation.
